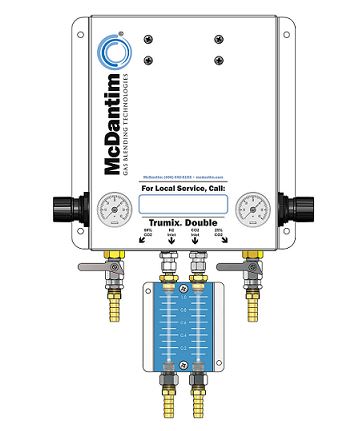

McDantim Trumix® Double Blender With Leak Detector

$1,563.95 USD
  • Default Blend- 60% CO2 / 40% N2; 25% CO2 / 75% N2
  • Custom Blends: Each blender is built to order to suit your needs. Specify the blend if different than above in the notes below.
  • Fittings: The panel comes with 3/8" Barb fittings. Different size fittings are available at no extra cost.  Specify size in notes below: 1/4", 5/16", 3/8" barbs and 1/4" female NPT.
  • Connections: Two Inlet Gas Lines (CO2 & N2), Two Mixed Gas Outlet Lines.
  • Accuracy and flow range: Maintains accuracy of +/- 2% of full scale or better within the flow range of 0.4 to 40 liters per minute (.85 to 85 cubic feet per hour).
  • Inlet pressure: Standard pressures: 55 and 70 psi, Maximum working pressure: 150 psi. Blender can be customized to your required inlet pressure.
  • Outlet Pressure: Adjustable outlet pressure of 0-60 psi per blend. The maximum outlet pressure will always be 10 psi lower than the minimum inlet pressure.
  • Upgraded metal body inlet regulators to increase durability and safety.
  • No electrical set-up required.
  • 5 Year Limited Warranty.
  • High flow model provides approximately double the flow rate on the standard model at the same inlet pressure.
* Eligible for Free Shipping Program

Description

SKU: MB200-LD
Availability: In Stock Pre order Out of stock
Description

Trumix® blenders mix CO₂ and N₂ on demand and are best used for long-draw draft systems. The Trumix® Double blender comes preset with your custom blends to best fit your system. The panel mounts easily on the wall and is simple to install. With the Trumix® Double HPR blender, customization of the blends gives you endless options and the flexibility to expand your draft beer selection. You could include low-CO₂-content nitrogenated beers, high-CO₂-content German-style beers, and domestic drafts on one system without the need for additional premixed cylinders.

Specifications

Fittings: 1/4" Female NPT

Item Type: High-Flow, Standard

Leak Indicator: No, Yes

Documents
Download the file    Spec Sheet
